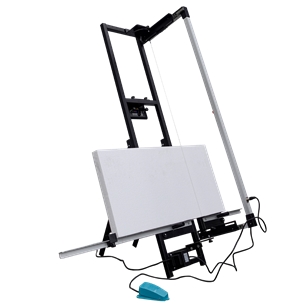

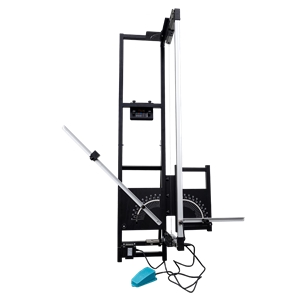

Table-type EPS and XPS Cutting Machine 200w With BMC Suitcase Flux

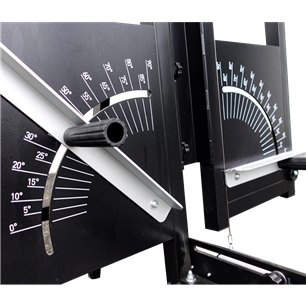

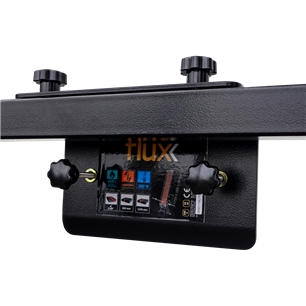

Styrofoam cutting machine (EPS/XPS/PU) extremely easy to use.Equipped with a temperature adjustment potentiometer, carrying case, 2 cutting wires, foot switch and level ruler.Equipped with different scales with millimetric and angular graduations, with the possibility of direct reading, adjustment of width, depth and cutting angle.Allows easy adjustment of cutting height.Allows the execution of equal horizontal and vertical cuts, thanks to the possibility of adjusting the height of the wire, as well as the presence of an adjustable depth limiter.
Technical Specifications
Adjustable Temperature | Sim |
---|---|
Tamanho Mesa de Corte | 1705x350x18mm |
Ângulo de Corte Ajustável | 0~90º |
Profundidade Máxima de Corte | 330mm |
Comprimento Máximo de Corte | 1370mm |
Material Fio de Corte | Gr20Ni80 |
Diâmetro Fio de Corte | 0,5mm |
Temperatura de Corte | 450ºC |
Transformador de Cobre | Sim |
Product Measurements | 1735,00 x 425,00 x 165,00 mm |
Protection Degree | IP44 |
Includes | Mala de Transporte, 2 fios de corte, interrutor de pé e régua de nível |
Frequency | 50 Hz |
Voltage | 230 V |
Power | 200 w |
Large Box | 1 Uni |
Small Box | 1 Uni |
Product Weight | 23,00 Kg |
Description
Clean cutting machine for EPS, XPS and PU boards is effortless and dust-free, with long service life and precise and fast cutting.
